Cleat Stock

  • Available in 5, 6 and 7mm thicknesses
  • Cut sheet, sized 30” x 54”
  • Min pulley diameter - 6.27”
  • Light blue color

  • Perfectly flat, never been wound on a core

    • No “smile” or “frown” at cleat top when HF welded
  • Ether based urethane

Sidewall

  • 2mm thick
  • 30” wide x 200’ long
  • Light blue color
  • 85 shore A durometer

  • Ether based urethane

Thermoplastic Lacing

  • For lightweight to medium load applications
    • 26 lbs. per inch max load for a 2” pitch
      • Pin will fail before hinge loops to avoid hinge loop breakage
  • Can be joined with a Flexco Amigo splice press
  • Hinge length - 48”
    • Max belt width - 42”

  • Pin length – 8’

  • Min pulley diameter is 6.27”

  • Light blue color

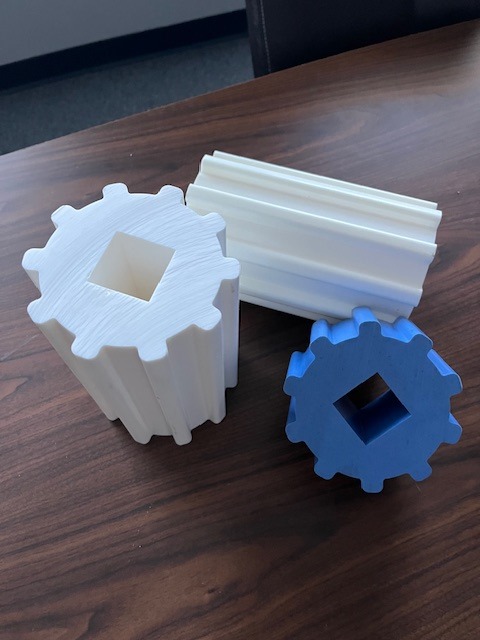

Sprocket

  • o Center Drive Pulleys
     molded using urethane resin
     10 tooth count
     9” face length
     1.5” square bore"
